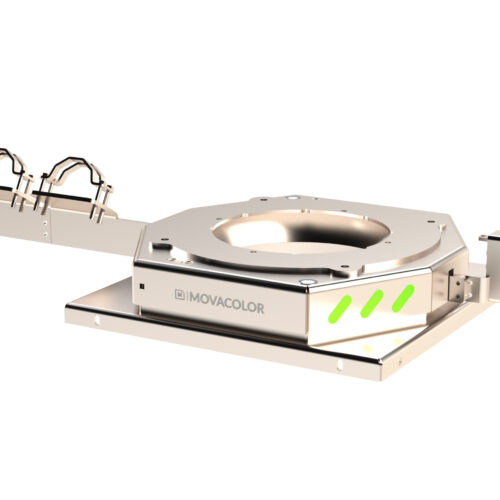

The MCNumera is developed to measure the consumption of the main material.
The MCNumera is developed to measure the consumption of the main material. The MCNumera can be fitted with many different types of hopper loaders. On the top plate of the MCNumera, an adapter plate can be mounted to fit loaders with an outletdiameter up to 280 mm. The different tube holders make it possible to connect any kind of material tube.
Indication lights on four sides of the MCNumera make it possible to easily check the status of the machine from 360 degrees around.* Themodularity of the Movacolor system makes it easy to integrate the MCNumera in existing setups of Movacolor. Together with the Movacolor Touch Controller the main material consumption can be monitored.
*not availabe for high temperatureversion
This unit is part of the Movacolor modular dosing concept and can easily be integrated and/or combined with all other products of the Movacolor product range.
Want to connect with other machine controllers or central monitoring systems? No problem. This unit is prepared to communicate via different protocols such as OPC-UA and Profinet.
Out-of-the-box installation: Start working more efficiently quickly. This unit is easy to install and supplied pre-configured. Can be operated without extensive training together with the MCTouchscreen controller.
Reduce waste and save costs by producing more consistently.
Capable of dosing at extreme low- and high dosing rates.
Equiped with proven Movacolor dosing technology which gives you full control over your material input.
Standard version: 120 degrees High temperature version: 180 degrees
Determined by the loader. Maximum capacity 75 kg (material included)
Injection molding and extrusion
Modbus TCP/IP, Profibus*, Profinet*
Internal memory (static changes), MCSmart data logging software (dynamic changes)
95-250 VAC, 50/60 Hz. By integrated automatic voltage selector
150 Watt maximum
English, German, Dutch, French, Hebrew, Turkish, Chinese simplified, Chinese traditional, Thai, Japanese, Russian, Italian, Czech, Portuguese, Spanish, Indonesian, Polish, Korean, Hungarian, Swedish, Romanian ,Slovenian, Croatian, Serbian.**
8” full color touch screen display
Start input: potential free, 24 VDC or extruder tacho (0-30 VDC)
Alarm, warning, run
* optional ** additional languages on request
